TEKNİK ÖZELLİKLER |
||||
|
MALZEME KALİTESİ |
ASTM A105 |
AİSİ304 |
AİSİ 316 |
MS58 |
|
ÖLÇÜLER |
1/8" - 4" |
|
|
|
|
BAĞLANTI ŞEKLİ |
DİŞLİ |
|
|
|
|
BASINÇ |
3000 |
6000 |
9000 |
|
|
STANDARTLAR |
ASME B16.11 |
ANSİ B 1.20.1 |
ASTM A182 |
|
|

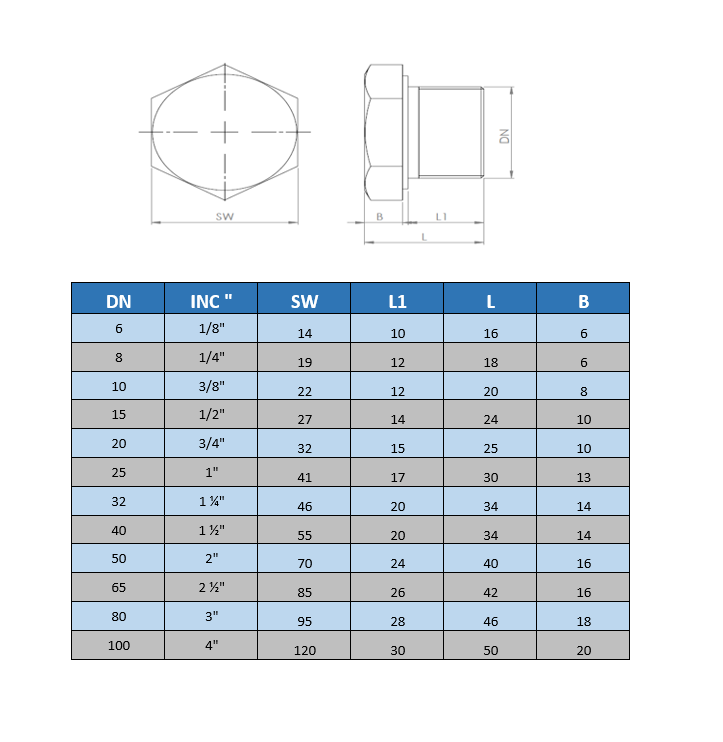

NW |
DN |
SW |
L1 |
L |
B |
|
6 |
1/8" |
14 |
10 |
14 |
4 |
|
8 |
1/4" |
19 |
12 |
16 |
4 |
|
10 |
3/8" |
22 |
12 |
16 |
4 |
|
15 |
1/2" |
27 |
14 |
20 |
6 |
|
20 |
3/4" |
32 |
16 |
22 |
6 |
|
25 |
1" |
41 |
18 |
26 |
8 |
|
32 |
1 1/4" |
46 |
20 |
30 |
10 |
|
40 |
1 1/2" |
55 |
20 |
30 |
10 |
|
50 |
2" |
65/70 |
24 |
36 |
12 |
|
65 |
2 1/2" |
80 |
26 |
38 |
12 |
|
80 |
3" |
90 |
28 |
42 |
14 |
|
100 |
4" |
120 |
30 |
44 |
14 |
